HPE7-A03 Online Practice Questions

Explanation:
In network design, the Main Distribution Frame (MDF) and Intermediate Distribution Frame (IDF) are critical components of the network infrastructure. The MDF is the primary hub of the network, often where services from outside the campus or building enter and get distributed. It acts as a central point for network distribution. On the other hand, IDFs are secondary hubs situated throughout the building or campus, extending connectivity provided by the MDF to various endpoints or areas within the building. The simple difference between them lies in their roles within the network infrastructure: the MDF serves as the main point of network ingress and egress, while IDFs are used to further distribute the network to specific locations or floors within the building.

Explanation:
For ACME Retail, which has multiple locations and a mix of environments including high-ceiling warehouses and retail spaces, an Aruba Instant OS 8 deployment is a suitable WLAN approach. Aruba Instant OS provides a controller-less architecture, which simplifies the deployment and management of the wireless network, especially across multiple sites. This approach enables ACME Retail to manage their entire wireless network from a single interface without the need for dedicated hardware controllers, reducing costs and complexity. Instant OS also supports advanced features like Adaptive Radio Management and ClientMatch to ensure optimal performance in diverse environments, making it an effective solution for ACME's varied locations and requirements.

Explanation:
In the scenario described, the most significant issue with the core switch selection, according to Aruba Campus Access learning resources, is answer A: "The core switch will not support the 25GbE downlinks to the distribution switches." This is a critical consideration because the bandwidth capabilities between the core and distribution layers significantly impact the overall network performance and scalability. If the core switch cannot support 25GbE downlinks, it may create a bottleneck, preventing the distribution switches from operating at their full capacity and affecting the performance of connected devices and applications. Ensuring the core switch has the necessary port speeds and densities to support the intended design and traffic patterns is crucial in network design, as emphasized in Aruba's documentation on campus network architectures.

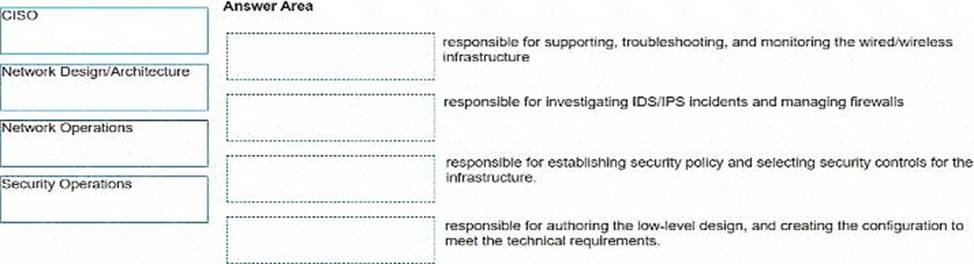

Explanation:
CISO: responsible for establishing security policy and selecting security controls for the infrastructure.
Security Operations: responsible for investigating IDS/IPS incidents and managing firewalls.
Network Operations: responsible for supporting, troubleshooting, and monitoring the wired/wireless infrastructure.
Network Design/Architecture: responsible for authoring the low-level design, and creating the configuration to meet the technical requirements.

Explanation:
When presenting a network design solution to a customer, it is crucial to focus on the benefits that the solution will bring to their business. This includes both tangible returns, such as cost savings, increased efficiency, and improved performance, and intangible returns, such as enhanced security, scalability, and user satisfaction.
Highlighting how the solution addresses the customer's specific needs and challenges, and how it aligns with their business objectives, helps in demonstrating the value of the solution and facilitates decision-making. Including tangible and intangible returns in the presentation makes it more compelling and relevant to the customer's business goals, thereby increasing the likelihood of the proposal's acceptance.
