JN0-351 Online Practice Questions

Explanation:

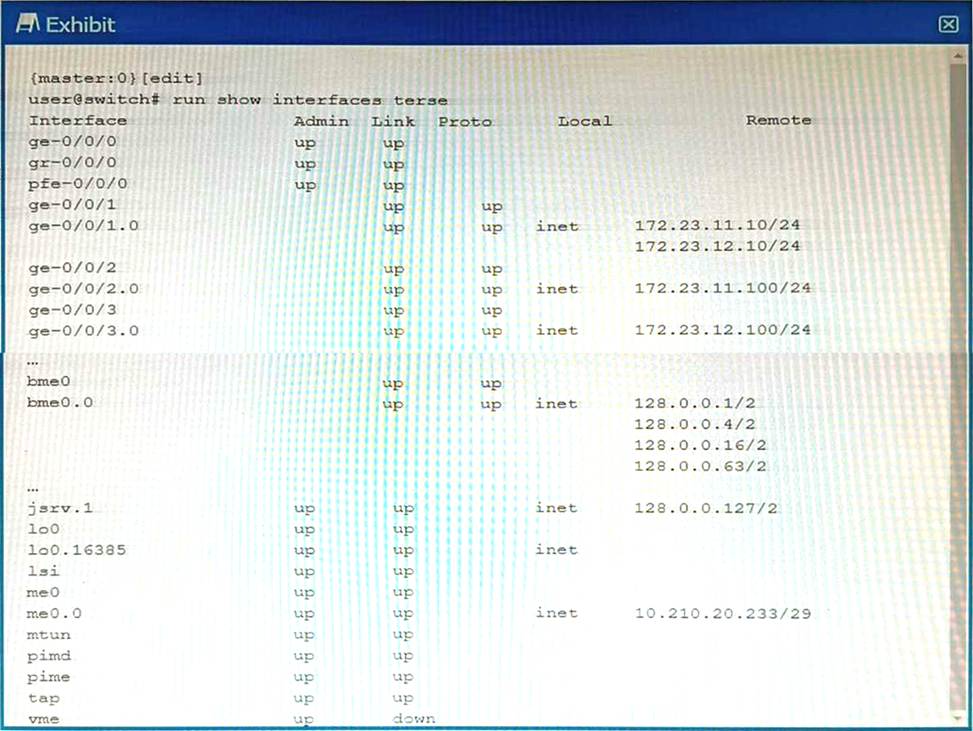

In the image, we see the output of the interface status of a network device, which is typically used for management and configuration purposes. Typically, the management interface is configured on a separate, more reliable network to allow network administrators to securely access the device without interference from regular data network traffic.
In the displayed list of interfaces, the me0 or me0.0 interface is a common indication of a management interface, as "me" often stands for "management ethernet." According to the information shown, the me0.0 interface has the IP address 10.210.20.233/29, indicating it is likely the management IP address of the device.

Explanation:
The feature that enables an interface on an EX Series switch to receive both untagged traffic (from the computer) and tagged traffic (from the IP phone) is the voice VLAN12.
The voice VLAN feature in EX-series switches enables access ports to accept both data (untagged) and voice (tagged) traffic and separate that traffic into different VLANs12. This allows the switch to differentiate between voice and data traffic, ensuring that voice traffic can be treated with a higher priority12. Therefore, option D is correct.

Explanation:
BFD is a protocol that can be used to quickly detect failures in the forwarding path between two adjacent routers or switches. BFD can be integrated with various routing protocols and link aggregation protocols to provide faster convergence and fault recovery.
According to the Juniper Networks documentation, the following protocols support BFD on Junos OS devices1:
BGP: BFD can be used to monitor the connectivity between BGP peers and trigger a session reset if a failure is detected. BFD can be configured for both internal and external BGP sessions, as well as for IPv4 and IPv6 address families2.
OSPF: BFD can be used to monitor the connectivity between OSPF neighbors and trigger a state change if a failure is detected. BFD can be configured for both OSPFv2 and OSPFv3 protocols, as well as for point-to-point and broadcast network types3.
LACP: BFD can be used to monitor the connectivity between LACP members and trigger a link state change if a failure is detected. BFD can be configured for both active and passive LACP modes, as well as for static and dynamic LAGs4.
Other protocols that support BFD on Junos OS devices are: IS-IS: BFD can be used to monitor the connectivity between IS-IS neighbors and trigger a state change if a failure is detected. BFD can be configured for both level 1 and level 2 IS-IS adjacencies, as well as for point-to-point and broadcast network types.
RIP: BFD can be used to monitor the connectivity between RIP neighbors and trigger a route update if a failure is detected. BFD can be configured for both RIP version 1 and version 2 protocols, as well as for IPv4 and IPv6 address families.
VRRP: BFD can be used to monitor the connectivity between VRRP routers and trigger a priority change if a failure is detected. BFD can be configured for both VRRP version 2 and version 3 protocols, as well as for IPv4 and IPv6 address families.
The protocols that do not support BFD on Junos OS devices are:
RSTP: RSTP is a spanning tree protocol that provides loop prevention and rapid convergence in layer 2 networks. RSTP does not use BFD to detect link failures, but relies on its own hello mechanism that sends BPDU packets every 2 seconds by default.
FTP: FTP is an application layer protocol that is used to transfer files between hosts over a TCP
connection. FTP does not use BFD to detect connection failures, but relies on TCP’s own
retransmission and timeout mechanisms.
Explanation:
1: [Configuring Bidirectional Forwarding Detection] 2: [Configuring Bidirectional Forwarding Detection for BGP] 3: [Configuring Bidirectional Forwarding Detection for OSPF] 4: [Configuring Bidirectional Forwarding Detection for Link Aggregation Control Protocol] : [Configuring Bidirectional Forwarding Detection for IS-IS] : [Configuring Bidirectional Forwarding Detection for RIP] : [Configuring Bidirectional Forwarding Detection for VRRP] : [Understanding Rapid Spanning Tree Protocol] : [Understanding FTP]

Explanation:
In this scenario where you are a network operator wanting to add a second ISP connection and remove the default route to the existing ISP and decide to deploy the BGP protocol in the network, the correct two statements are:
IBGP peers advertise routes received from EBGP peers to other IBGP peers.
This is correct. Inside an Autonomous System (AS), IBGP peers will advertise routes learned from EBGP peers to other IBGP peers to ensure that all routers within the AS have information about external destinations.
IBGP peers advertise routes received from IBGP peers to other IBGP peers.
This is typically incorrect. Within IBGP, route information is not passed from one IBGP peer to another by default, to prevent routing information loops within an AS, unless route reflectors are configured or there is a full mesh IBGP setup.

Explanation:
The Graceful Routing Engine Switchover (GRES) feature in Junos OS enables a router with redundant Routing Engines to continue forwarding packets, even if one Routing Engine fails1. GRES preserves interface and kernel information, ensuring that traffic is not interrupted1. However, GRES does not preserve the control plane1.
To preserve routing during a switchover, GRES must be combined with either Graceful Restart protocol extensions or Nonstop Active Routing (NSR)1. When GRES is combined with NSR, nearly 75 percent of line rate worth of traffic per Packet Forwarding Engine remains uninterrupted during GRES1. Any updates to the primary Routing Engine are replicated to the backup Routing Engine as soon as they occur1.
Therefore, when GRES is combined with NSR, routing is preserved and the new master RE does not restart rpd1.
