Latest NSE7_EFW-7.2 Exam Practice Questions

The practice questions for NSE7_EFW-7.2 exam was last updated on 2025-04-26 .

Viewing page 1 out of 4 pages.

Viewing questions 1 out of 23 questions.

Question#1

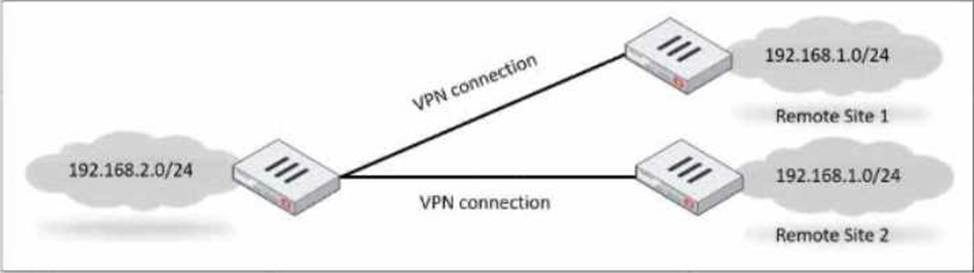

Refer to the exhibit, which shows a network diagram.

Which IPsec phase 2 configuration should you impalement so that only one remote site is connected at any time?

A. Set route-overlap to allow.

B. Set single-source to enable

C. Set route-overlap to either use―new or use-old

D. Set net-device to enable

Explanation:
To ensure that only one remote site is connected at any given time in an IPsec VPN scenario, you should use route-overlap with the option to either use-new or use-old. This setting dictates which routes are preferred and how overlaps in routes are handled, allowing for one connection to take precedence over the other (C).
Reference: FortiOS Handbook - IPsec VPN

Question#2

Which two statements about ADVPN are true? (Choose two.)

A. You must disable add-route in the hub.

B. AllFortiGate devices must be in the same autonomous system (AS).

C. The hub adds routes based on IKE negotiations.

D. You must configure phase 2 quick mode selectors to 0.0.0.0 0.0.0.0.

Question#3

Exhibit.

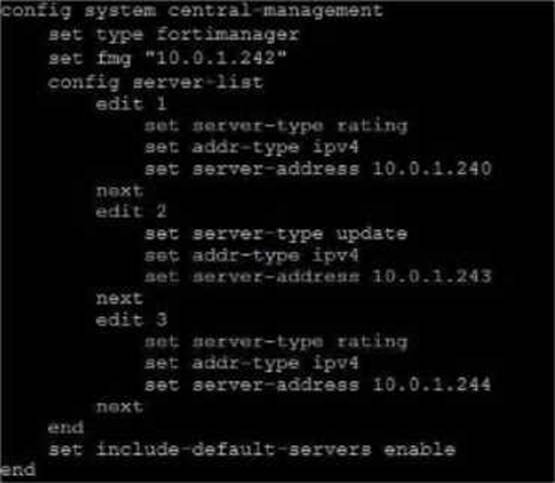

Refer to exhibit, which shows a central management configuration
Which server will FortiGate choose for web filler rating requests if 10.0.1.240 is experiencing an outage?

A. Public FortiGuard servers

B. 10.0.1.242

C. 10.0.1.244

D. 10.0.1.243

Explanation:
In the event of an outage at 10.0.1.240, the FortiGate will choose the next server in the sequence for web filter rating requests, which is 10.0.1.244 according to the configuration shown in the exhibit. This is because the server list is ordered by priority, and the server with the lowest priority number is chosen first. If that server is unavailable, the next server with the next lowest priority number is chosen, and so on. The public FortiGuard servers are only used if the include-default-servers option is enabled and all the custom servers are unavailable.
Reference: = Fortinet Enterprise Firewall Study Guide for FortiOS 7.2, page 132.

Question#4

Which two statements about IKE vision 2 are true? (Choose two.)

A. Phase 1 includes main mode

B. It supports the extensible authentication protocol (EAP)

C. It supports the XAuth protocol.

D. It exchanges a minimum of four messages to establish a secure tunnel

Explanation:
IKE version 2 supports the extensible authentication protocol (EAP), which allows for more flexible and secure authentication methods1. IKE version 2 also exchanges a minimum of four messages to establish a secure tunnel, which is more efficient than IKE version 12.
Reference: = IKE settings | FortiClient 7.2.2 - Fortinet Documentation, Technical Tip: How to configure IKE version 1 or 2 … - Fortinet Community

Question#5

Exhibit.

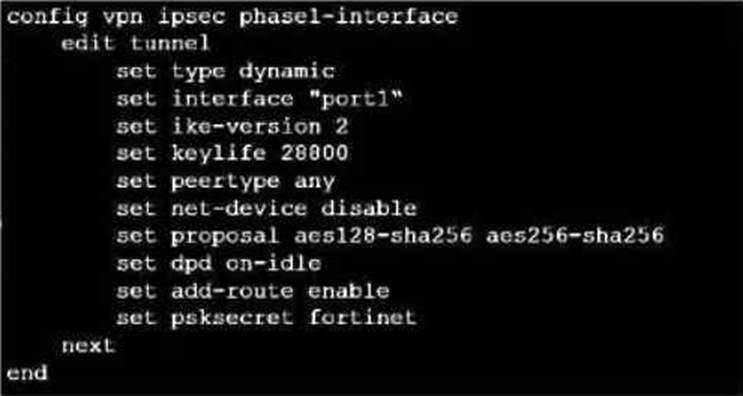

Refer to the exhibit, which contains a partial VPN configuration.
What can you conclude from this configuration1?

A. FortiGate creates separate virtual interfaces for each dial up client.

B. The VPN should use the dynamic routing protocol to exchange routing information Through the tunnels.

C. Dead peer detection s disabled.

D. The routing table shows a single IPSec virtual interface.

Explanation:
Given the configuration snippet from the provided exhibit, the best conclusion is:
The routing table shows a single IPSec virtual interface.
This is indicated by the set net-device disable command within the configuration, suggesting that all dial-up clients will use a shared IPsec virtual interface rather than separate interfaces for each client.
